Commercial glasshouses require solutions for ventilation, temperature regulation, carbon dioxide enrichment, fertiliser and irrigation mixing (fertigation), including water recirculation, and intelligent management of all climate parameters.

IrriSmart delivers complete and configurable solutions for horticultural applications such as electronic and mechanical climate control, irrigation and fertiliser mixing and LED lighting. Our electronic and mechanical equipment for modern horticultural production is used in almost all horticultural applications, ranging from glasshouses and indoor farming to research facilities and garden centres.

IrriSmart offers turnkey solutions built from our wide product range. Reliability, user friendliness and the possibility of combining and configuring our systems and products keep us at the forefront of the horticultural industry.

Shop Senmatic

Digital Growing Technologies

Discover everything Senmatic by DGT hast to offer for complete irrigation fertigation and greenhouse control.

Irrigation Controller

AMI Controller fertilizer computer offers a cost-effective alternative to purchasing a completely new fertilizer mixer.

With the AMI Penta Controller, you can work extremely accurate with the fertilizer mix for each individual plant culture. You will be able to do so with less daily work effort, due to the flexible and easy operation using a keyboard.

Easy to operate

AMI Penta controller is easy to operate with well-arranged menus shown on a large 10.1” touch screen. Many languages are available and switching between them is very simple. This minimizes the risk of human errors in nurseries employing people of different nationalities.

Ami Penta

AMI Penta sets even greater focus on the plants’ need for precision fertilizing and accurate acidity in the irrigation water and at the right time. As a high-end fertilizer mixer machine, it ensures optimal nutrient delivery for every irrigation group.

Software for all groups, recipes and opening of valves is included in the price – meaning no extra future cost if your needs change.

AMI Penta is also available as Bio Mixer ensuring precise dosing of bio fertilizers. All you need to do is to purchase a bio venturi for your existing AMI Penta mixer.

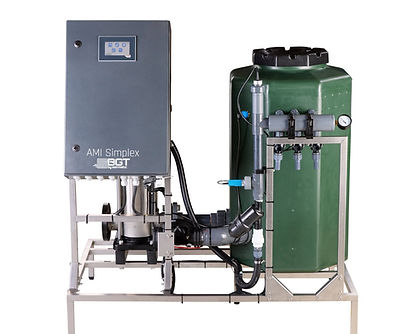

Ami Simplex

AMI Simplex focuses on the plants’ need for precise fertilization and accurate acidity in the irrigation water — at the right time. The fertilizer mixer is easy to operate, offers a high capacity and great flexibility, and is equipped with modern technology such as the DGT On the Go app.

You can choose between two different pump sizes and optionally add pH control.

By installing a venturi and a pH sensor, the AMI Simplex is capable of regulating the pH value.
Flexible setup of 3 irrigation groups
Pre-programming of up to 4 fertilizer recipes
User-friendly touch display
Always delivered with mixing tank – ensures the right mix of fertilizers and thereby higher accuracy of EC and pH control
Precise water control
Control of up to 12 soleniod valves

SiiP System

In order to ensure both the quality and quantity of the harvested product and thereby being able to fulfill sales agreements, the grower must have increased focus on both correct irrigation and fertilizer.

The traditional way of producing Soft Fruit has been by manually operating watering and fertilizer, and it has been a time-consuming task to ensure timely irrigation. For some this might have caused a poorer yield with plants of varying quality. The SIIP system is a state-of-the-art system and helps you saving time, ensures proper irrigation and fertilizer, and thereby greater and better yield – and at the same time achieves a cost saving – now and in the future.

Is your production system up-to-date and future-proofed? In case your answer is no, please read our further information – and if yes, we are sure that we will still be able to help you improving your production and output.

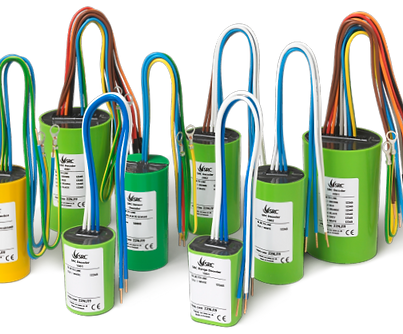

Decoders

The Fully automatic SiiP system receives a live constant update from in-field sensors via multi-core or 2-wire by the revolutionary Mk3 Decoder.

The user sets up their target set-points, based on their growing requirements, sits back and focuses on the actual growing of the plants.
The SiiP system takes out the worry regarding, exactly what level of irrigation and feeding is
required, when compared to the traditional methods of monitoring your irrigation by hand
every 1 to 2 hours or every 30 minutes by radio, assuming no missed signals!

Next generation MK3 system:

Up to 800 decoders per 2-wire/interface
More than 75 active
More than 75 sensor decoders
Wire run up to 3km/10,000′ star 12km/40,000′ loop
True two-way communication
Comprehensive diagnostic capabilities
Get in touch for more details

Sensors

Sun Sensor

Secures automatic start of watering depending on the light radiation and EC regulation.

Drain Counter

Sun and drain regulation of the automatic start
Informs the AMI Penta mixer of how many drains are left after the watering.
Based on this information the mixer gives a start signal for watering by the predefined watering interval
Can be expanded with EC and/or pH sensors for reading of drain water

Soil Sensor

Measuring of humidity and temperature of the growing medium
Gives signal for watering and reduces the risk of drying-up

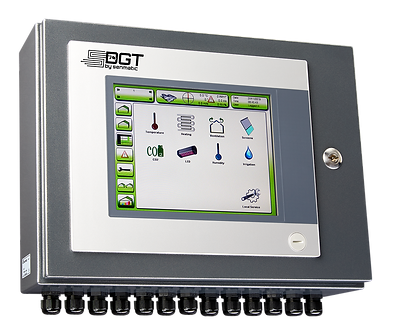

Climate Control

IrriSmart supplies advanced climate computers for the monitoring and control of the complex processes in commercial glasshouses, creating the optimal climate for plants.

Logic Climate Control (LCC) computers control all climate functions. The modular system makes it easy to add more sections or climate zones, expanding the system to handle more functions and expand with more glasshouses. Furthermore, you can control and adjust remotely from any location using a tablet or smartphone.

The communication is fast and the system built up using our own software, enabling the advantages of dynamic climate control.

IrriSmart's electronic climate control products are highly reliable and can handle extreme environments. These include:

Logic Climate Control (LCC) products for intuitive and configurable monitoring and control from single glasshouses up to 16 climate zones

Climate sensors from complete weather stations to temperature, humidity and CO2 controllers available which can be added and combined as required

If your requirement is for an analog system comprising climate and heat regulators for simple, double or top/side vent opening control, we can supply this too

All systems can be combined and extended as required.

LED Lights

One of the major benefits of our LED fixtures is the ability for the grower to control the spectral distribution. Our solutions suit most modern commercial glasshouses around the world and are designed to withstand the harsh environment of a glasshouse and keep working year after year. Our LED grow lights integrate fully into our electronic climate control systems and offer dynamic control of the intensity and spectral composition of your glasshouse lighting.

Many variants of LED top lights, including light bars with lens systems, are available:

Fixtures that emit light in the photosynthetic active region of the visible light spectrum

Fixtures designed to replicate sunlight, useful for research and garden centres, for example

Energy savings of up to 50 % – the natural replacement for the conventional HPS systems used today

LED systems proven and tested with more than 3 million burn hours

UV Purification

Today, water reuse is important for irrigation. Water scarcity, water costs and awareness of water management issues all contribute to the increasing use of water recirculation systems. However, water can contain bacterial and fungal and viral spores. We supply a UV disinfection system for effective water treatment, to resolve these issues.

The water purification system uses a UV lights, which are calculated to suit your flow rates and can be installed in places where water is reused and stored in tanks, from where fungal spores and bacteria can easily spread in the recirculated water. The system can be installed together with a water recirculation pump and tank, and also directly online in the water distribution system.

We deliver UV disinfection systems adjustable by water flow and transparency and available in three sizes, ranging from 10 l/min to 400 l/min.

DGT On The Go

DGT On the Go connects you to your greenhouse round the clock. By connecting your systems to the Cloud, DGT On the Go provides the most informative process insight on the market about all controllable factors in your greenhouse, such as climate, irrigation, or grow lights. It easily connects to our Ethernet based PLC products such as the AMI Penta, LCC4 and LCC2 Touch.

The multi-platform cloud-based solution is a plug & play system accessible from all devices, including laptops, smartphones, and tablets. You can both monitor and control your end device remotely.

The role-based user management improves overall security and access management to sensitive data and compartments. All services are hosted by a trusted 3rd party ensuring a very high uptime and automatic global scalability. All data collected to the cloud is encrypted.

Drip Lines
